Complete range of performance memory. Samsung's expanded line-up of NAND products offers diverse solutions
optimized for automotive use. Exceptional eMMC, UFS, and AutoSSD empower the next generation of hugely upgraded
in-vehicle infotainment systems, for outstanding mobility experiences.

Complete range of performance memory. Samsung's expanded line-up of NAND products offers diverse solutions optimized for automotive use. Exceptional eMMC, UFS, and AutoSSD empower the next generation of hugely upgraded in-vehicle infotainment systems, for outstanding mobility experiences.

Complete range of performance memory. Samsung's expanded line-up of NAND products offers diverse solutions optimized for automotive use. Exceptional eMMC, UFS, and AutoSSD empower the next generation of hugely upgraded in-vehicle infotainment systems, for outstanding mobility experiences.

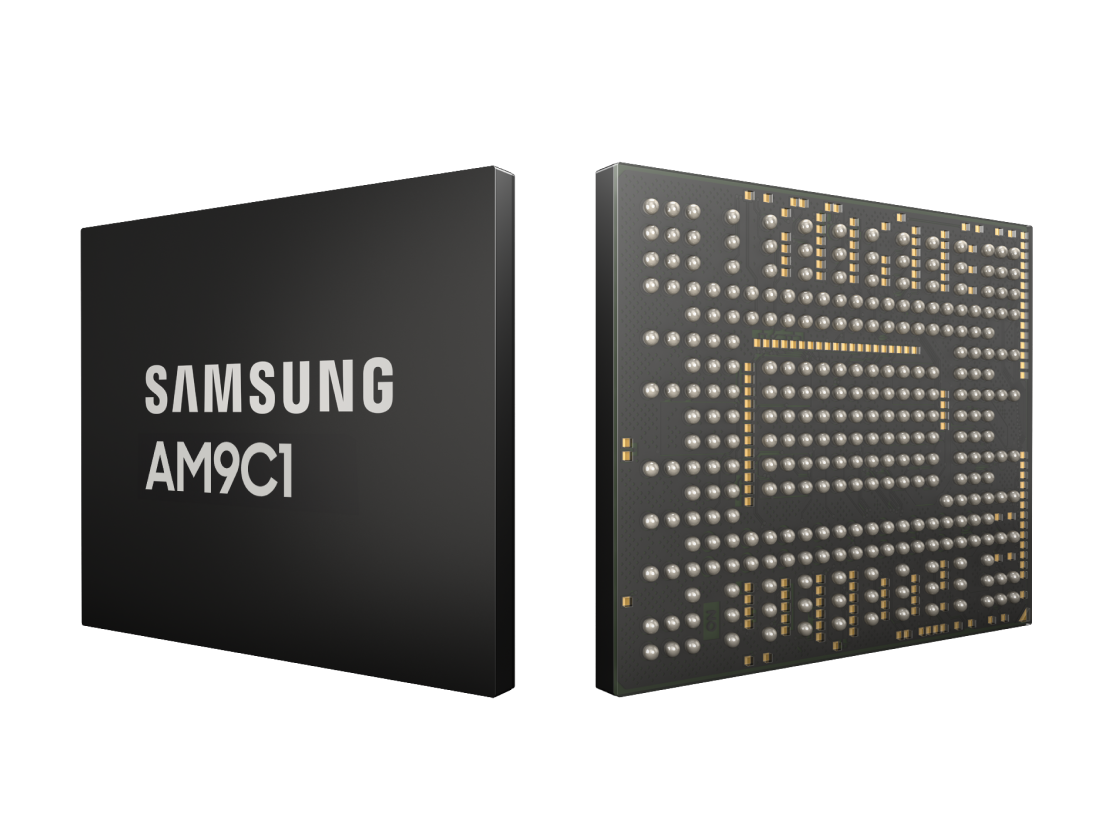

AM9C1 AM9C1 AM9C1

Top-capacity AutoSSD with V8 NAND Top-capacity AutoSSD with V8 NAND Top-capacity AutoSSD with V8 NAND

The industry’s first V8-based storage solution combines leading capacity with automotive-grade reliability and HE-SLC namespace support, ensuring both high performance and long-term durability.
Alternative Text
  • Interface

    Interface

    PCIe 4.0 x4

  • Sequential Read/Write

    Sequential Read/Write

    Up to 4,900 / 4,500MB/s

  • Random Read/Write

    Random Read/Write

    up to 600K / 400K IOPS

  • Form Factor

    Form Factor

    BGA

  • Capacity

    Capacity

    128GB, 256GB, 512GB, 1TB, 2TB

  • Temperature

    Temperature

    -40 ~ 105 °C

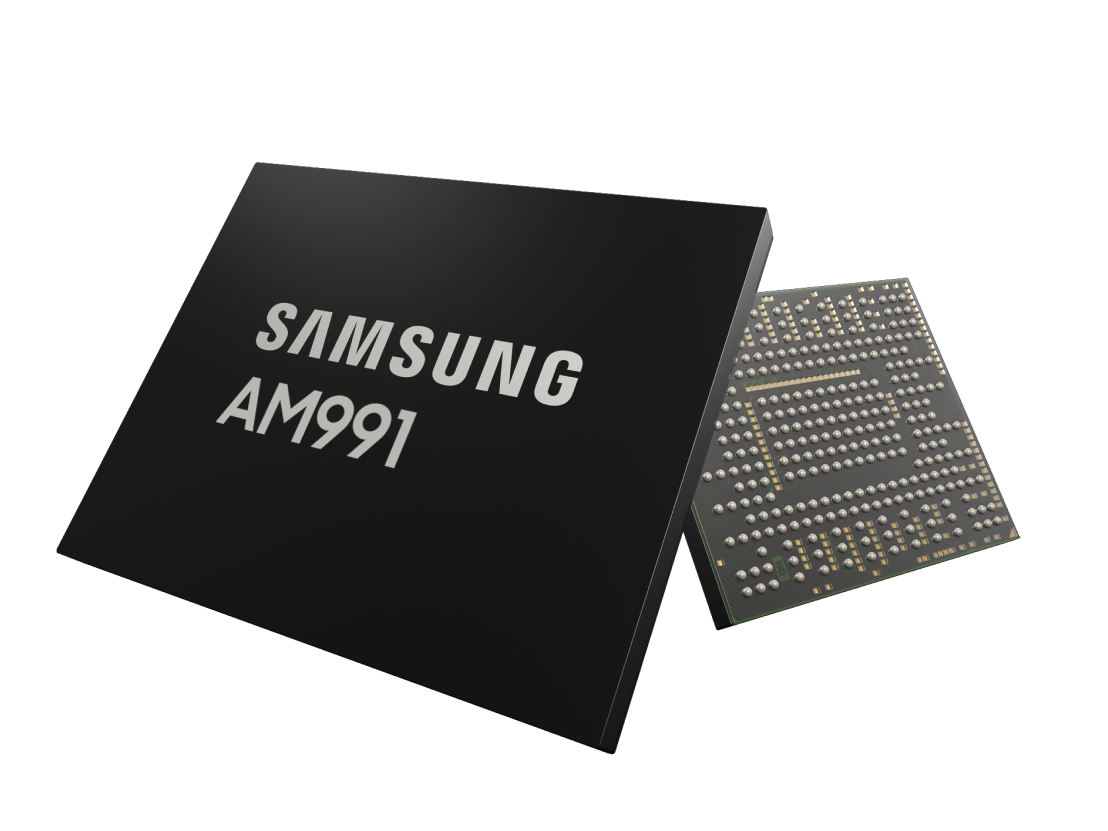

AM991 AM991 AM991

BGA AutoSSD with 1TB and 2,300 MB/s speed BGA AutoSSD with 1TB and 2,300 MB/s speed BGA AutoSSD with 1TB and 2,300 MB/s speed

BGA-type AutoSSD's are ideal for creating PKG structures specialized for the automotive industry. Up to 1TB of storage and max 2,300 MB/s read speed equip vehicles with ultrafast in-vehicle data management.
Alternative Text
  • Interface

    Interface

    PCIe 3.0 x4

  • Sequential Read/Write

    Sequential Read/Write

    Up to 2,300 / 1,150MB/s

  • Random Read/Write

    Random Read/Write

    up to 275K / 200K IOPS

  • Form Factor

    Form Factor

    BGA

  • Capacity

    Capacity

    128GB, 256GB, 512GB, 1TB

  • Temperature

    Temperature

    -40 ~ 105 °C

Results
All Products
Part List

Up to three products are comparable at the same time. Click Export button to compare more than three products.

All product specifications reflect internal test results and are subject to variations by the user's system configuration

All product images shown are for illustration purposes only and may not be an exact representation of the product

Samsung reserves the right to change product images and specifications at any time without notice

For further details on product specifications, please contact the sales representative of your region.
